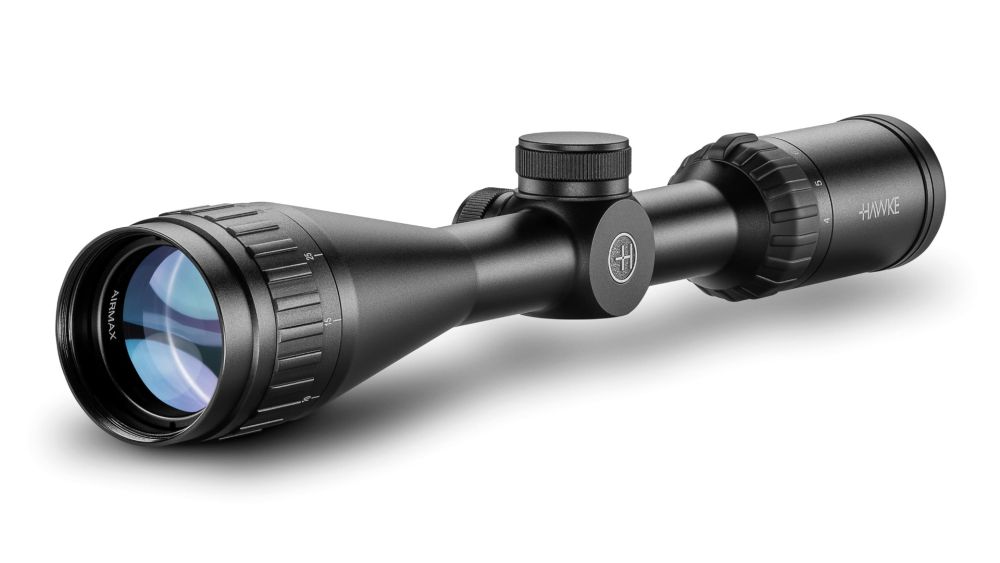

Hawke Airmax 4-12x40 AO AMX

The Airmax 1 inch family has three magnification ranges to suit the needs of almost any shooter. Built in an adjustable objective chassis, the Airmax uses the non-illuminated AMX reticle to improve downrange accuracy of any airgun shooter. For accurate focus and the elimination of parallax error to infinity, the integrated adjustable objective operates with precision and ease. A more traditional scope design, the Airmax is a great option for the serious airgun hunter that wants to keep the weight of their rifle down.

Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.

Half Mil Dot spacing on the lower post provides increased aim points for long shots.

The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.

• 16 layer fully multi-coated optics for exceptional clarity
• Wide view optical system ideal for airguns
• Glass etched reticle to withstand high recoil
• Integrated adjustable objective for parallax adjustment
• 1 inch mono-tube chassis for superior strength
• 1⁄4 MOA low profile no-snag fingertip turrets
• Fast focus eyebell and high torque zoom ring
• Threaded objective/ocular for optional accessories

Chassis:1″ Mono-tube
Optical System:4-12×
Objective:40mm
Reticle:AMX
Illumination:N / A
Focus/Parallax:Adjustable Objective - 9.1m / 10yds to Infinity
Field of View: m @100m / ft @100yds10 - 3.7m / 29.9 - 11ft
Eye relief:89mm / 3.5″
Length:322mm / 12.7″
Weight:522g / 18.4oz

Waterproof, Shockproof, Nitrogen purged.
All calibre rated.
